Prius 5th gen XW60 (2023+) Maintenance Schedule and Service Intervals

This is the maintenance schedule and associated service intervals for the Prius 5th gen XW60, introduced for the 2023 model year and continuing onward. It applies to all standard fifth-generation Prius models that share the same underlying mechanical architecture, drivetrain layout, and service requirements.

The Prius 5th gen XW60 is built on Toyota’s second-generation TNGA-C platform and uses the fifth-generation Toyota Hybrid System (THS 5). The Prius 4th gen XW50 (2016-2021) is also based on the TNGA-C platform, but it uses an earlier hybrid system and a different engine family, so its maintenance schedule and service requirements are not the same as those for the Prius 5th gen XW60.

All variants are powered by the M20A-FXS 2.0-liter inline four-cylinder Atkinson-cycle petrol engine paired with two motor-generators through a planetary-type continuously variable transmission. Energy storage is via a lithium-ion hybrid battery mounted under the rear seat. Front-wheel drive is standard, with an available electronic on-demand all-wheel drive system that adds a dedicated rear electric motor (market dependent).

This maintenance schedule covers the following mechanically equivalent models:

• Toyota Prius LE (FWD or AWD, depending on region)
• Toyota Prius XLE (FWD or AWD)
• Toyota Prius Nightshade (from 2025 onward, based on XLE, cosmetic differences only)
• Toyota Prius Limited (FWD or AWD)

All of these models use the same engine, hybrid components, cooling systems, braking architecture, and core service items. Differences between grades are limited to wheels, trim, and equipment, which do not affect routine maintenance.

Over time, there have been minor hardware updates. Notably, fifth-generation models use larger brake rotors compared to the previous generation, particularly on variants equipped with 19-inch wheels. Despite this, brake service intervals and procedures remain unchanged. No mid-cycle changes to the engine, hybrid system, or service schedule affect maintenance requirements.

This site has links for things like oil and spark plugs from which we earn a commission (which unfortunately nobody can save, not even us). If you appreciate this work, then please use those links. Thanks!

Prius 5th gen XW60 (2023+) Service Intervals

The basic service interval for the Prius 5th gen XW60 is every 10,000 miles or 12 months, whichever comes first. Toyota also recommends interim inspections at shorter mileage intervals depending on usage and operating conditions.

At each scheduled service, the following items are typically addressed:

• Change engine oil and oil filter
• Inspect brake system, including pads, rotors, and parking brake operation
• Inspect tires and rotate as needed
• Inspect suspension, steering components, and driveshafts
• Check engine coolant and hybrid system coolant levels
• Inspect inverter cooling system and hoses
• Check auxiliary battery condition
• Inspect wiper blades, exterior lights, and underbody components

Spark plugs, engine coolant replacement, brake fluid replacement, and hybrid system coolant replacement are long-interval items and are performed according to mileage or time limits specified in the owner’s manual, not at every service.

General Notes on Serviceability of the Prius 5th gen XW60 (2023+)

• The Prius 5th gen XW60 uses a liquid-cooled 2.0L M20A-FXS engine with Toyota’s fifth-generation hybrid system. The engine cooling system and the hybrid system cooling circuit are separate and should both be serviced according to schedule.
• Braking is handled by an electronically controlled system that blends regenerative and hydraulic braking. Brake wear is typically low, but brake fluid condition and hardware should still be inspected regularly.
• There is no conventional starter motor, alternator, or accessory drive belt. These functions are handled by the hybrid motor-generators, reducing routine service items.
• High-voltage hybrid components do not require regular servicing, but cooling ducts, hoses, and related components should be kept clear and inspected during routine maintenance.
• Routine service items such as oil changes and inspections are straightforward, but any work involving hybrid components must follow Toyota safety procedures.

Maintenance schedule for the Prius 5th gen XW60 (2023+)

This is the maintenance schedule for the Prius 5th gen XW60, covering all fifth-generation Prius models that share the same hybrid drivetrain and mechanical layout. It applies to all standard petrol-hybrid variants sold from the 2023 model year onward.

The content here is the same as in the official Toyota owner’s and maintenance manuals, but it has been reorganized and simplified for clarity.

The schedule is divided into three parts:

• Regular maintenance: Every 5,000 miles or 6 months, whichever comes first.
• Periodic maintenance: Maintenance tasks that occur between 10,000 miles – 30,000 miles or 12 months – 36 months, whichever comes first.
• Long-term service intervals: Items that require attention at longer, sporadic intervals.

Mileage-based and time-based intervals are shown together. Always follow whichever comes first. Additional inspections or shorter intervals may apply if the vehicle is operated under severe or demanding conditions, as outlined in the owner’s manual.

Regular Maintenance

At every 5,000-mile or 6-month service, Toyota specifies a set of recommended maintenance items for the Prius 5th gen XW60. The items listed below are checked at every 5,000-mile / 6-month service interval. However, not every item is serviced in the same way each time. The letters in the table show what action is required at that specific interval. For example, the HEV battery cooling intake filter is inspected at every service, but it is only cleaned at the 20,000-mile interval.

Toyota also lists additional maintenance items for special operating conditions every 5,000-miles / 6-months, whichever comes first. These only apply if the car is regularly driven under certain conditions, such as frequent short trips, extended idling, heavy loads, or dusty environments. In those cases, some items move from inspection to replacement, most commonly engine oil and the oil filter.

If most of your driving is normal commuting and mixed highway use, the standard table is what you will follow. If your usage matches the special operating conditions Toyota describes, refer to the additional maintenance table and adjust accordingly.

Periodic Maintenance

In addition to completing all items listed under Regular Maintenance (5,000 miles / 6 months), also perform the following periodic maintenance tasks for the Prius 5th gen XW60.
Periodic maintenance items occur between 10,000 and 30,000 miles, or 12 to 36 months, whichever comes first. These services introduce the first scheduled replacements rather than inspections, and they build on the regular maintenance rather than replacing it.

Long-Term Service Intervals

The following tasks are required less frequently, at longer intervals. While they are not part of regular or annual service, they are essential for long-term performance and reliability. Refer to the maintenance schedule table below for the recommended intervals.

Perform the following additional maintenance if towing, using a car-top carrier, or carrying heavy loads.

Tire sizes and pressures for the Prius 5th gen XW60 (2023+)

The following are tire sizes and tire pressures for the Prius 5th gen XW60.

About the Prius 5th gen XW60 (2023+)

The Prius 5th gen XW60 marks a clear turning point for Toyota’s best-known hybrid. This generation keeps the Prius formula intact but finally feels like a modern, cohesive car rather than a science project with license plates. It is still a dedicated hybrid liftback, but now one that makes sense alongside mainstream compact sedans and hatchbacks rather than sitting apart from them.

At the core of the XW60 is Toyota’s fifth-generation hybrid system paired with the M20A-FXS 2.0-liter inline four-cylinder Atkinson-cycle engine. This is a meaningful step up from the previous 1.8-liter setup.

The Prius 5th gen XW60 sits on Toyota’s second-generation TNGA-C platform, giving it a lower center of gravity and a noticeably stiffer structure than the 4th gen model. Compared to a Corolla Hybrid, it feels wider, more planted, and more settled at highway speeds. It is not a sports sedan, but the chassis now feels composed rather than passive. Steering is light and predictable, and the suspension favors comfort with better body control than earlier generations. Models with larger wheels ride a bit firmer, but still suit daily driving well.

Braking uses an electronically controlled system that blends regenerative and hydraulic braking. Pedal feel is more natural than before, and transitions between regen and friction braking are generally smooth. Larger brake components are fitted, especially on 19-inch wheel models, but regenerative braking keeps wear low and service intervals long.

Model differences are mostly about equipment rather than mechanical changes. LE, XLE, Nightshade, and Limited trims all share the same drivetrain. The Nightshade is essentially an appearance package, while the Limited adds more comfort and tech features. Front-wheel drive is standard, with AWD available using a dedicated rear electric motor.

From a maintenance perspective, the Prius XW60 remains very Toyota-like. Service intervals are long, routine tasks are straightforward, and the hybrid layout eliminates items like a starter motor, alternator, and accessory drive belts. Oil changes, inspections, and fluid checks form the backbone of ownership, with major items spaced far apart.

Overall, the fifth-generation Prius feels like the version Toyota has been building toward for years. It is still efficient, still sensible, and still unmistakably a Prius. But now it also feels complete, confident, and genuinely easy to recommend to someone who just wants a good car that happens to be a hybrid.

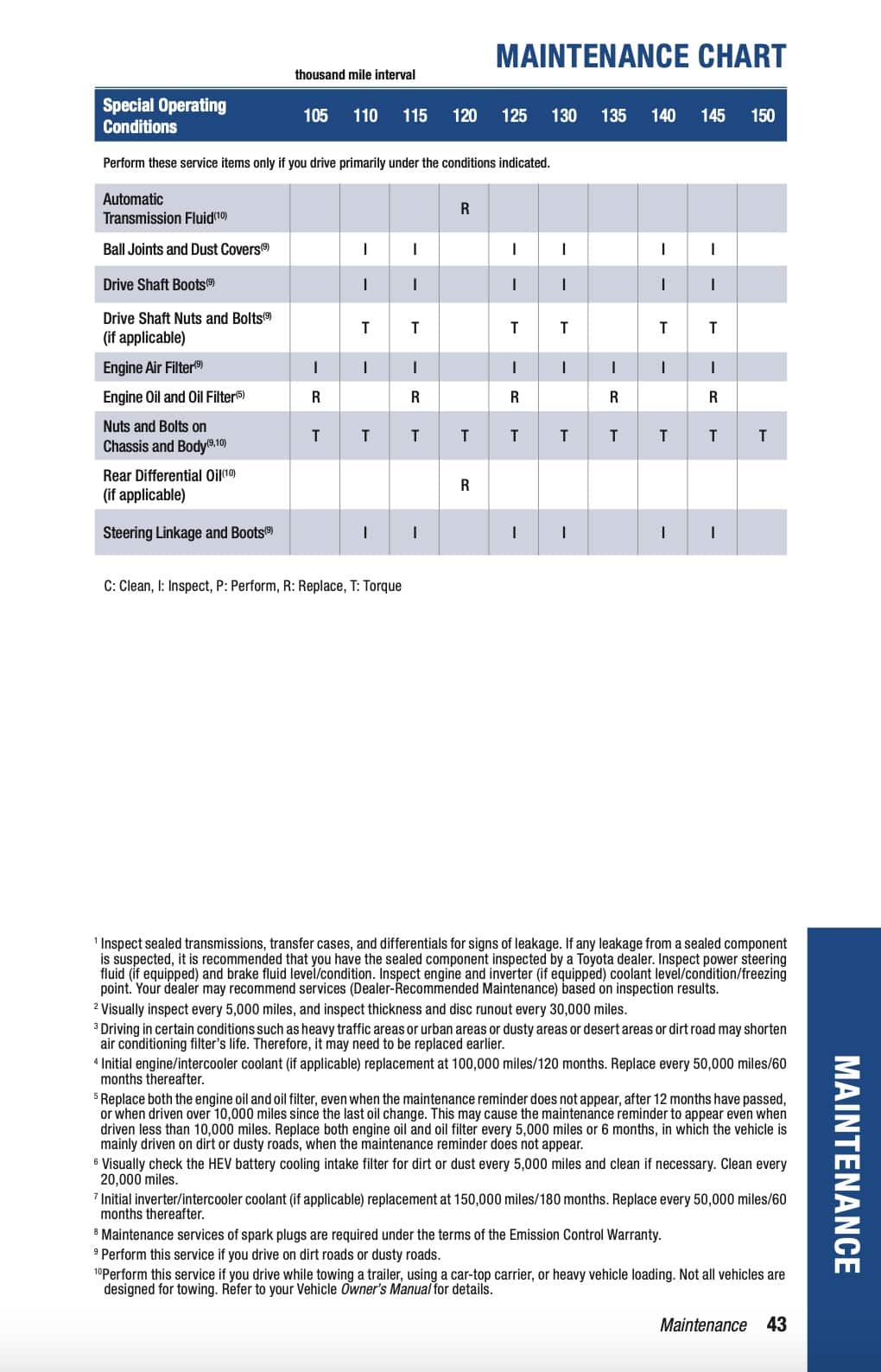

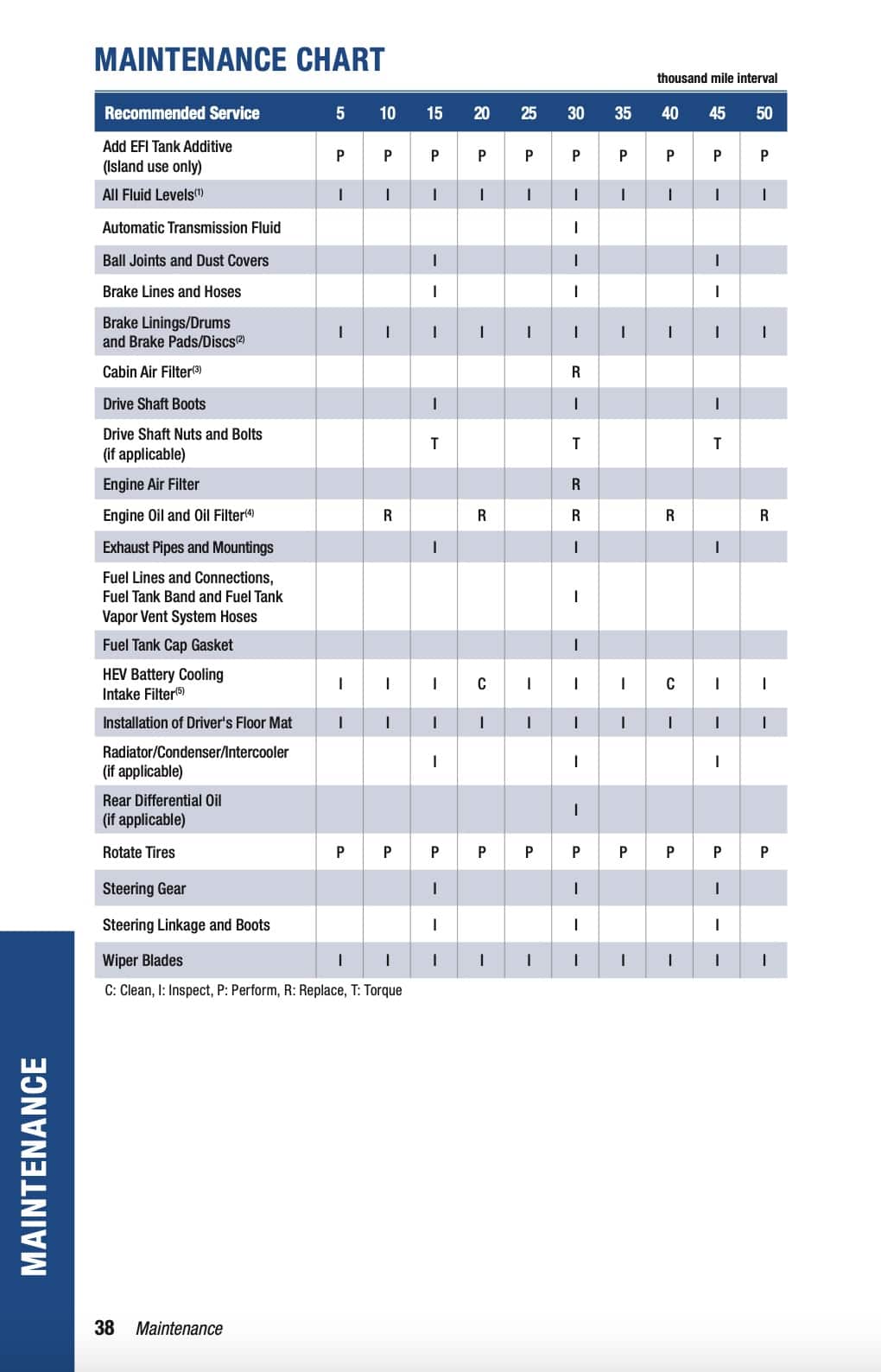

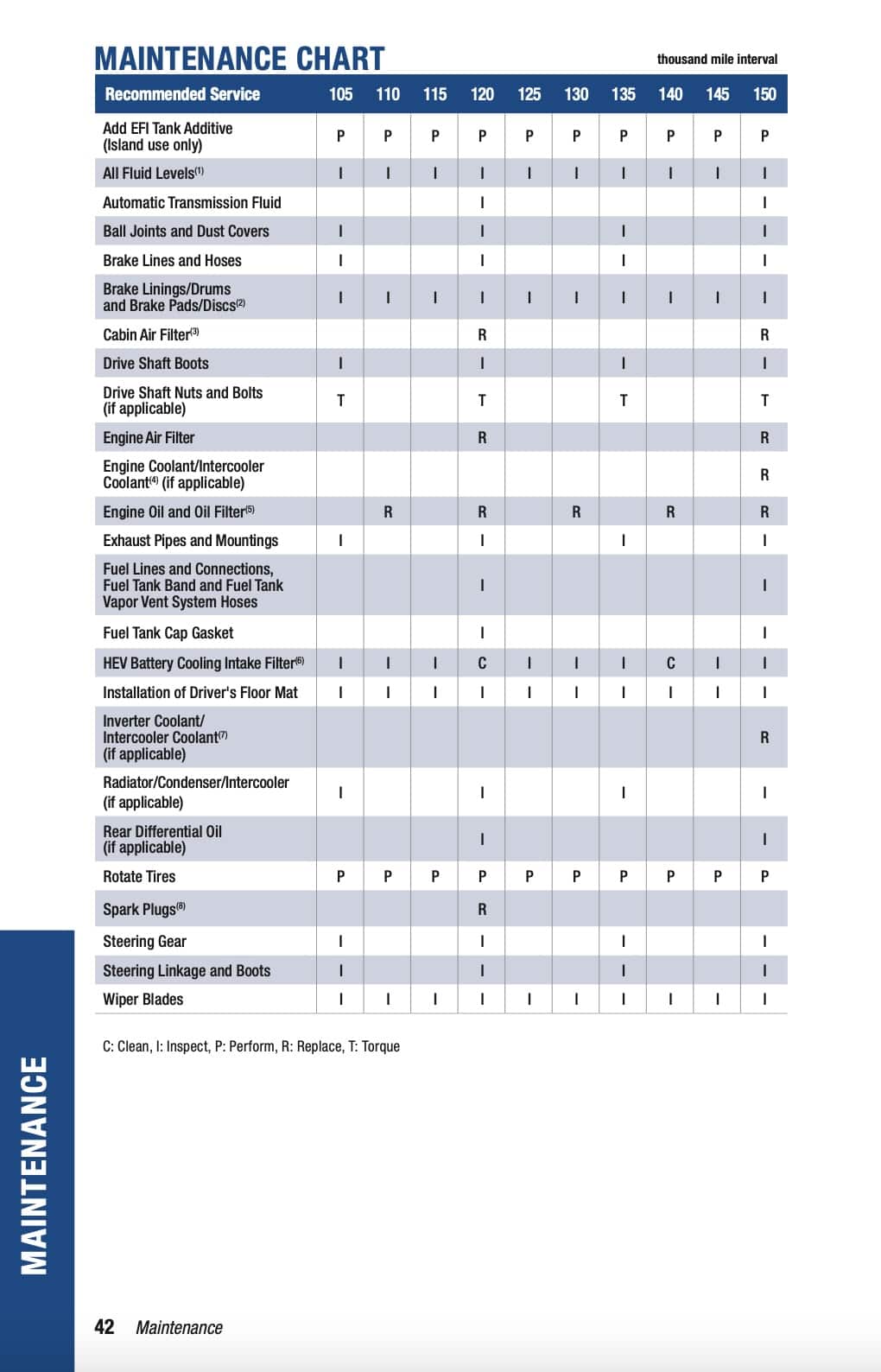

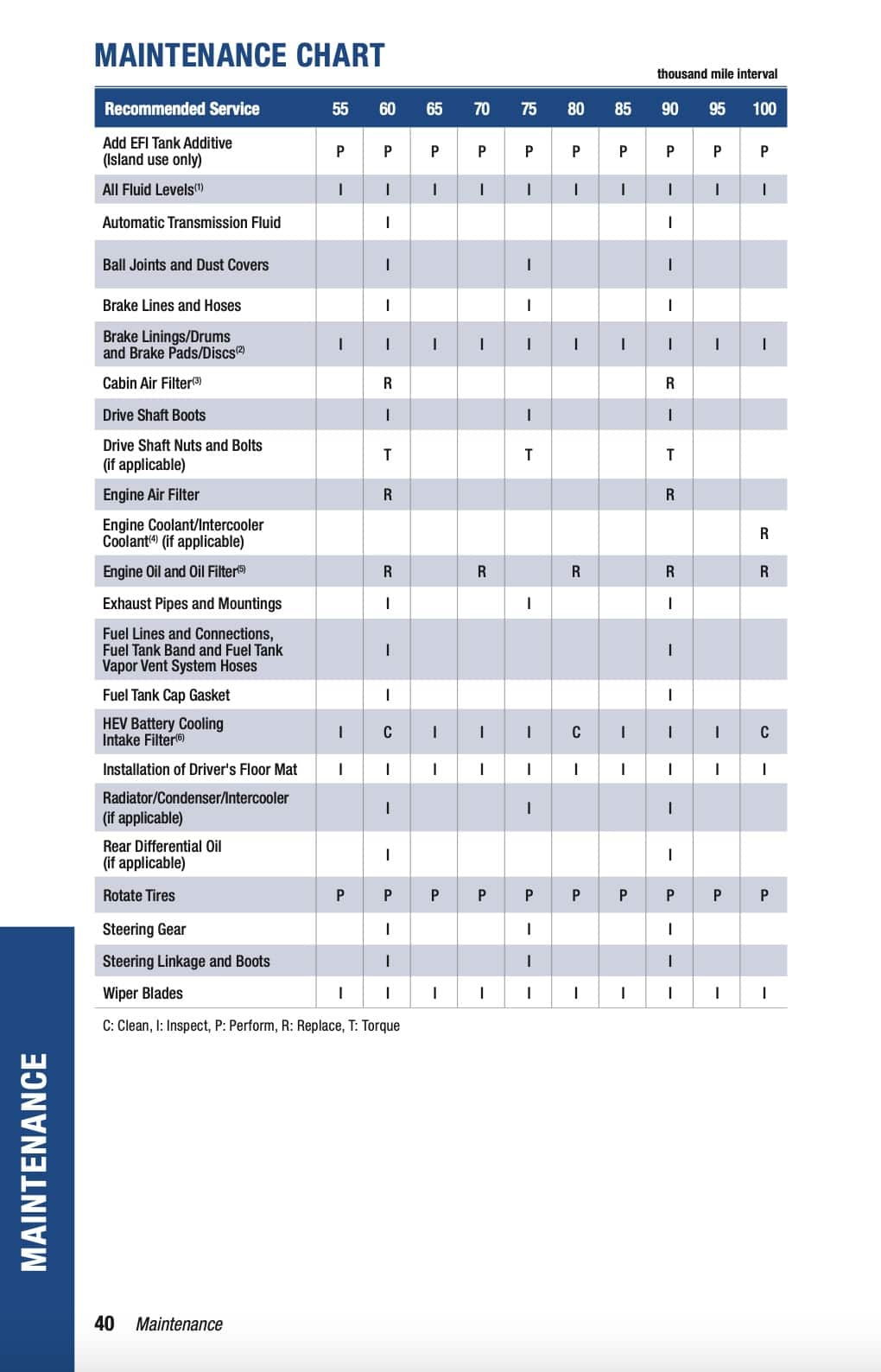

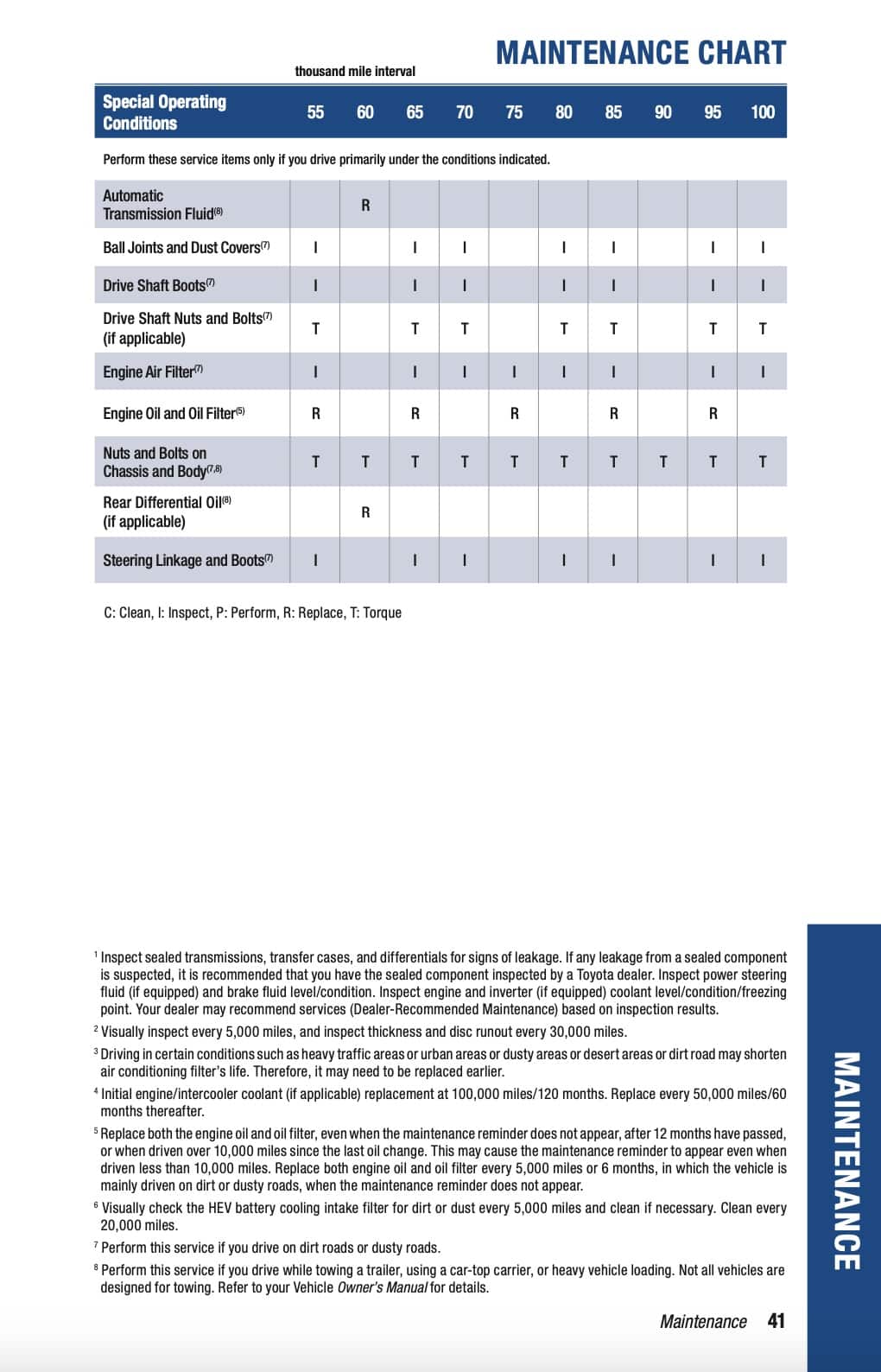

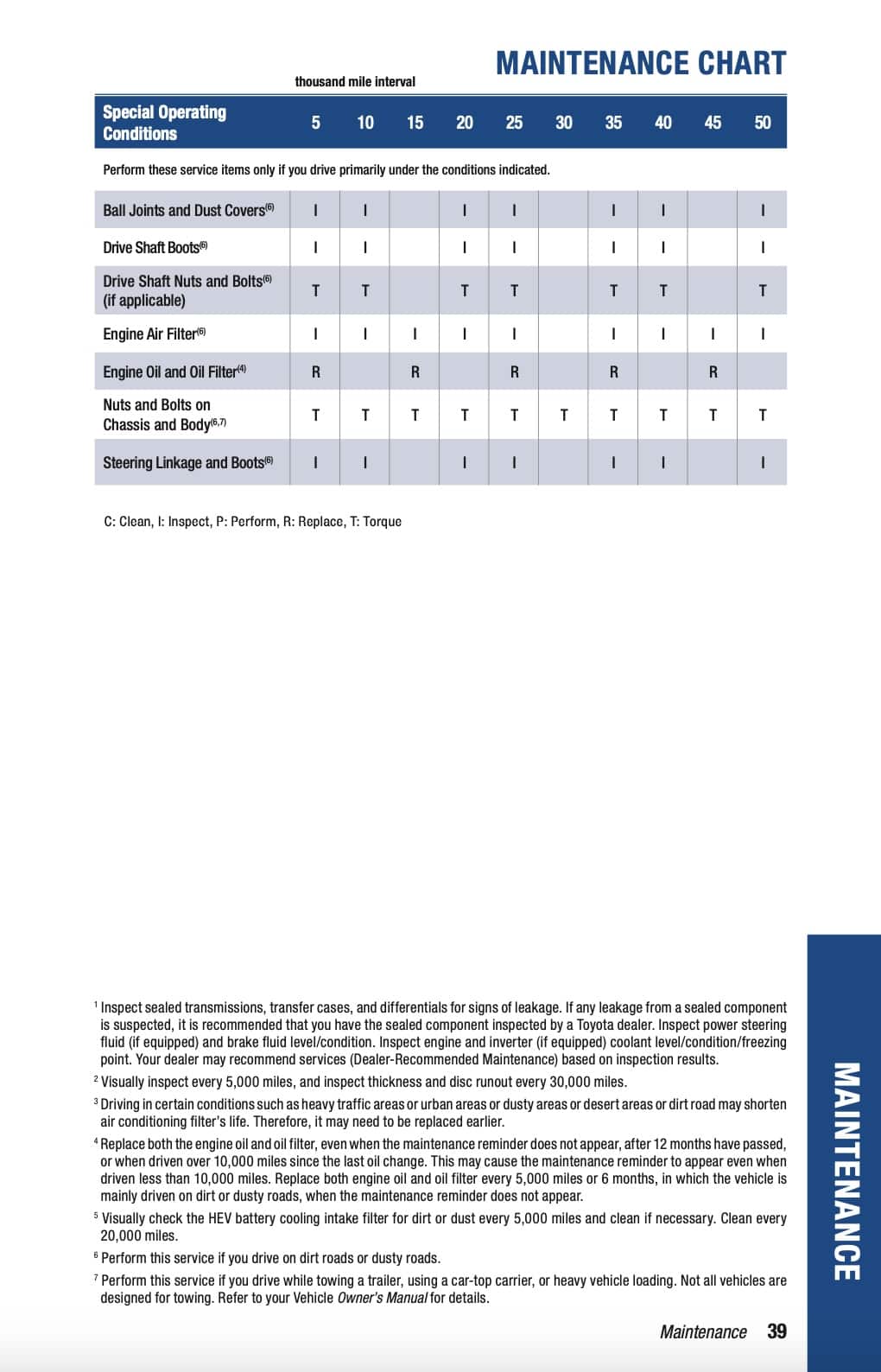

References — Screenshots from the Prius 5th gen XW60 (2023+) Owner’s Manual

Below is a selection of screenshots from the maintenance schedule for the Prius 5th gen XW60 (2023+) from the official manual.
